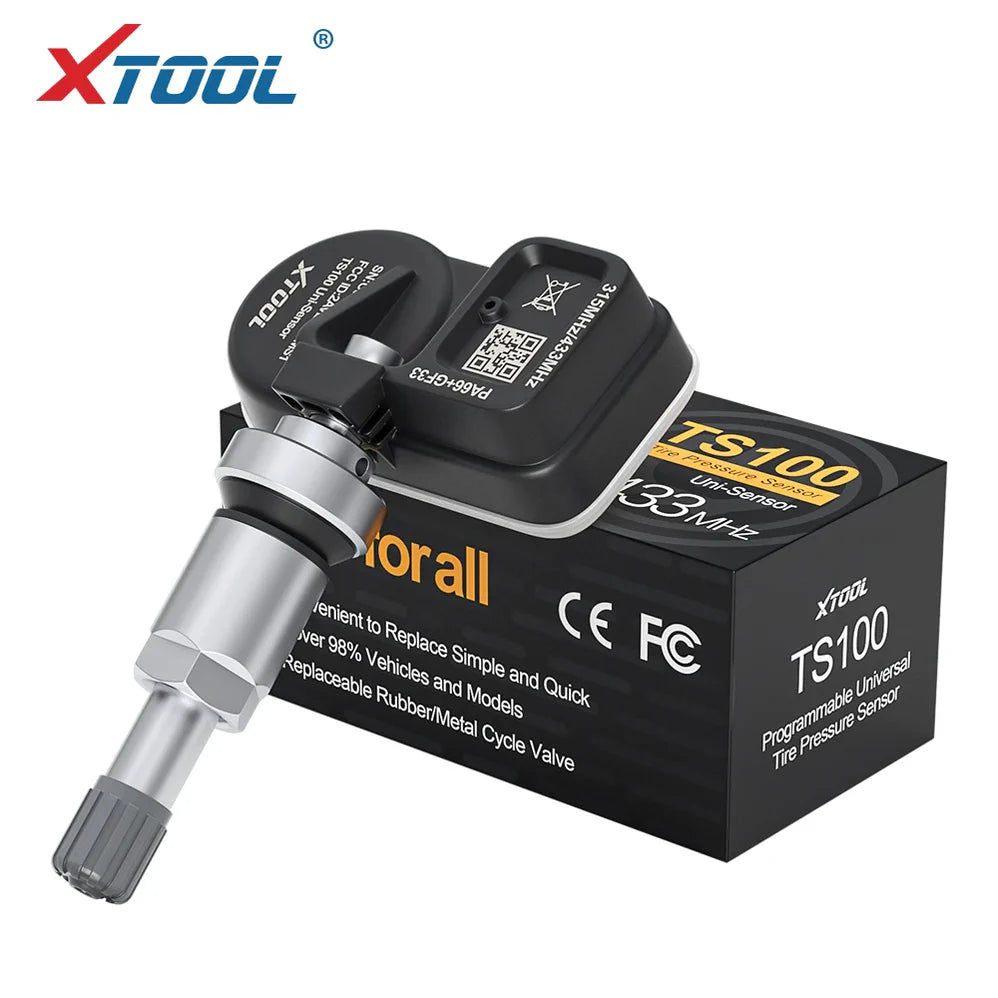

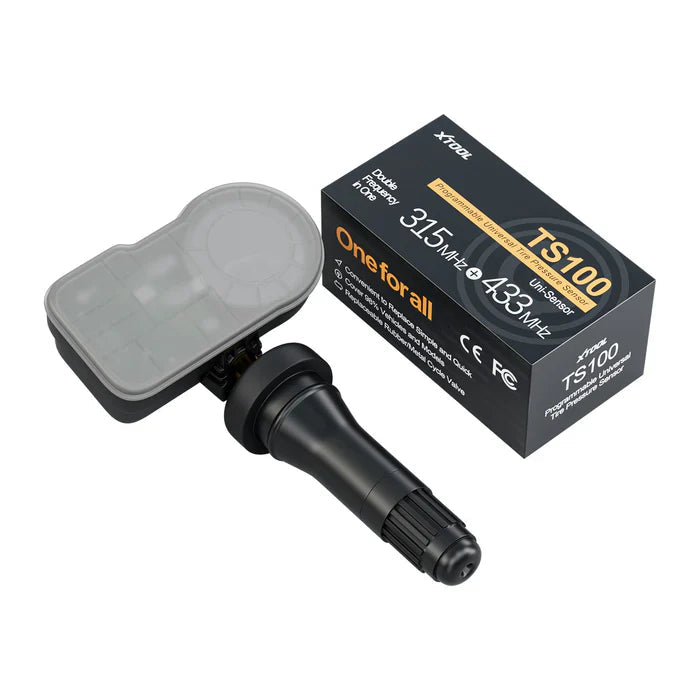

XTOOL TS100 Pro Programmable Universal Tire Pressure Sensor

TS100 PRO is a general-purpose programmable tire pressure sensor developed by Xtool. It can replace the original sensor of vehicles equipped with TPMS. About 99% of the models on the general market are suitable. It integrates 315MHz and 433MHz dual frequency. It can be activated, can be programmed unlimitedly, can be matched.

Product Features:

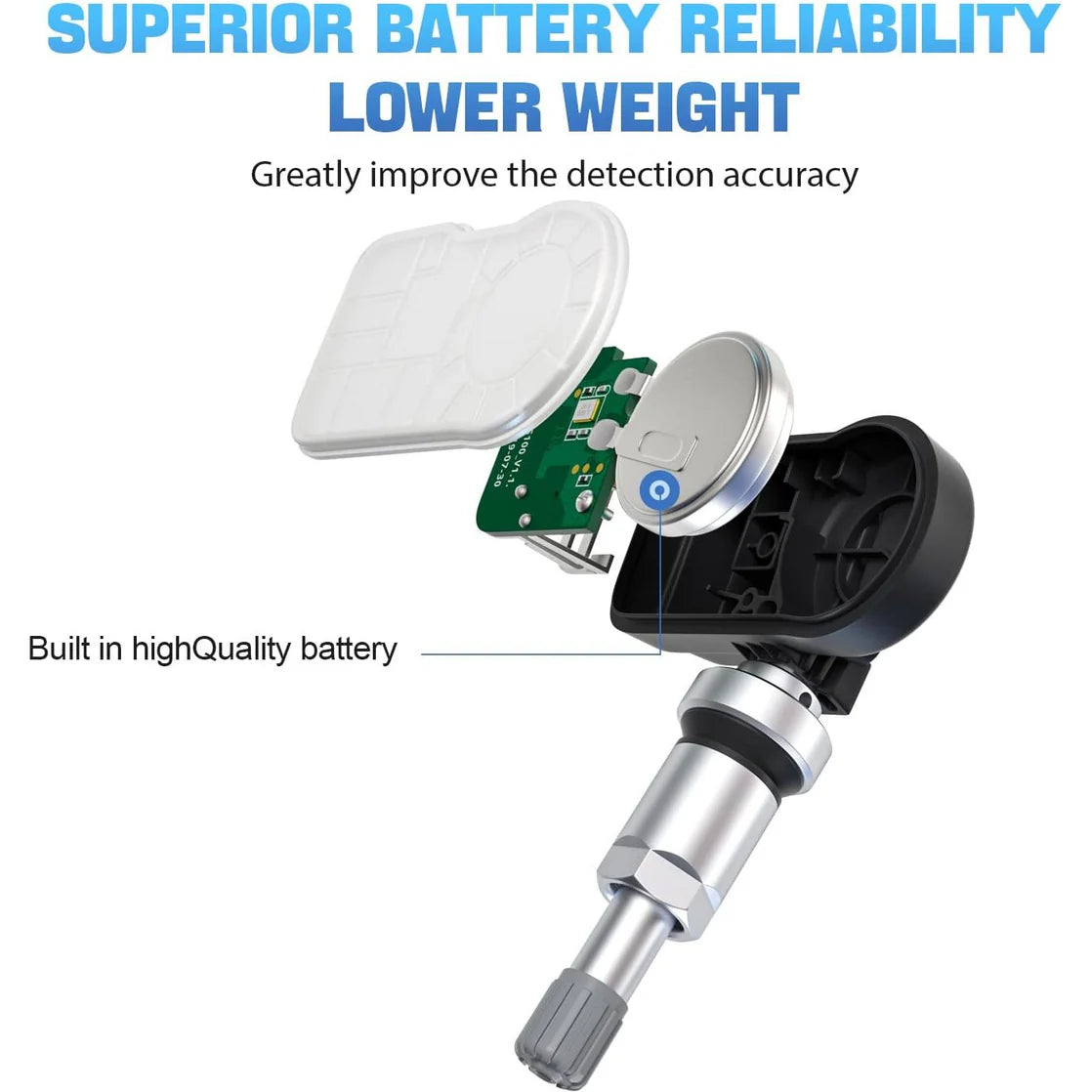

• 3–5 years battery life – Reliable, long-term performance

• 99%+ vehicle coverage – Constant updates keep you compatible

• Saves time & cost – No need to source various OEM sensors

• IP67 waterproof – Suitable for various weather conditions

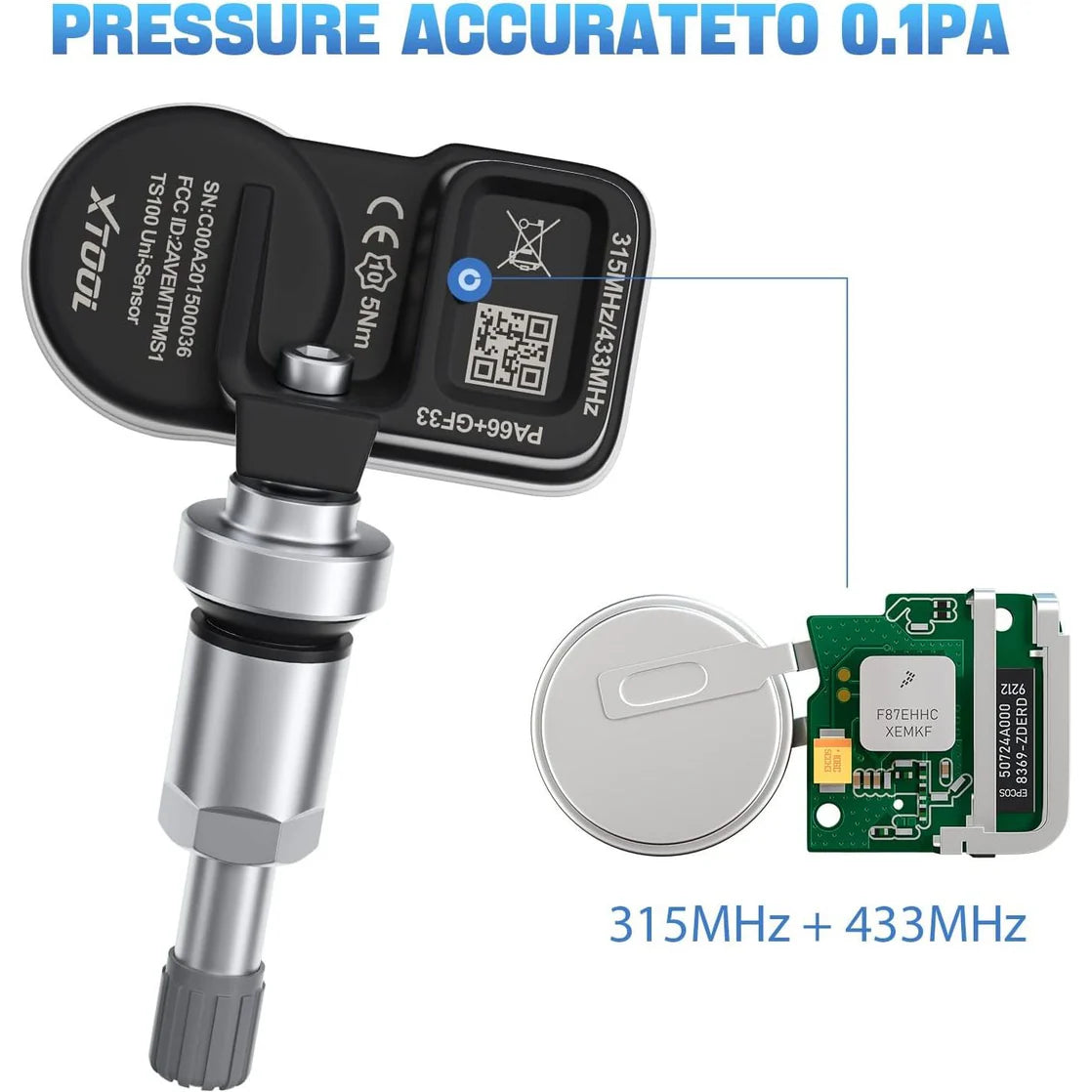

• Dual-frequency (315MHz & 433MHz) – Activation + unlimited programming

• 10°–45° adjustable angle – Fits different wheel installations

• Wide operating temperature range - suitable for diverse environments

• Wide pressure monitoring range - meeting different vehicle requirements

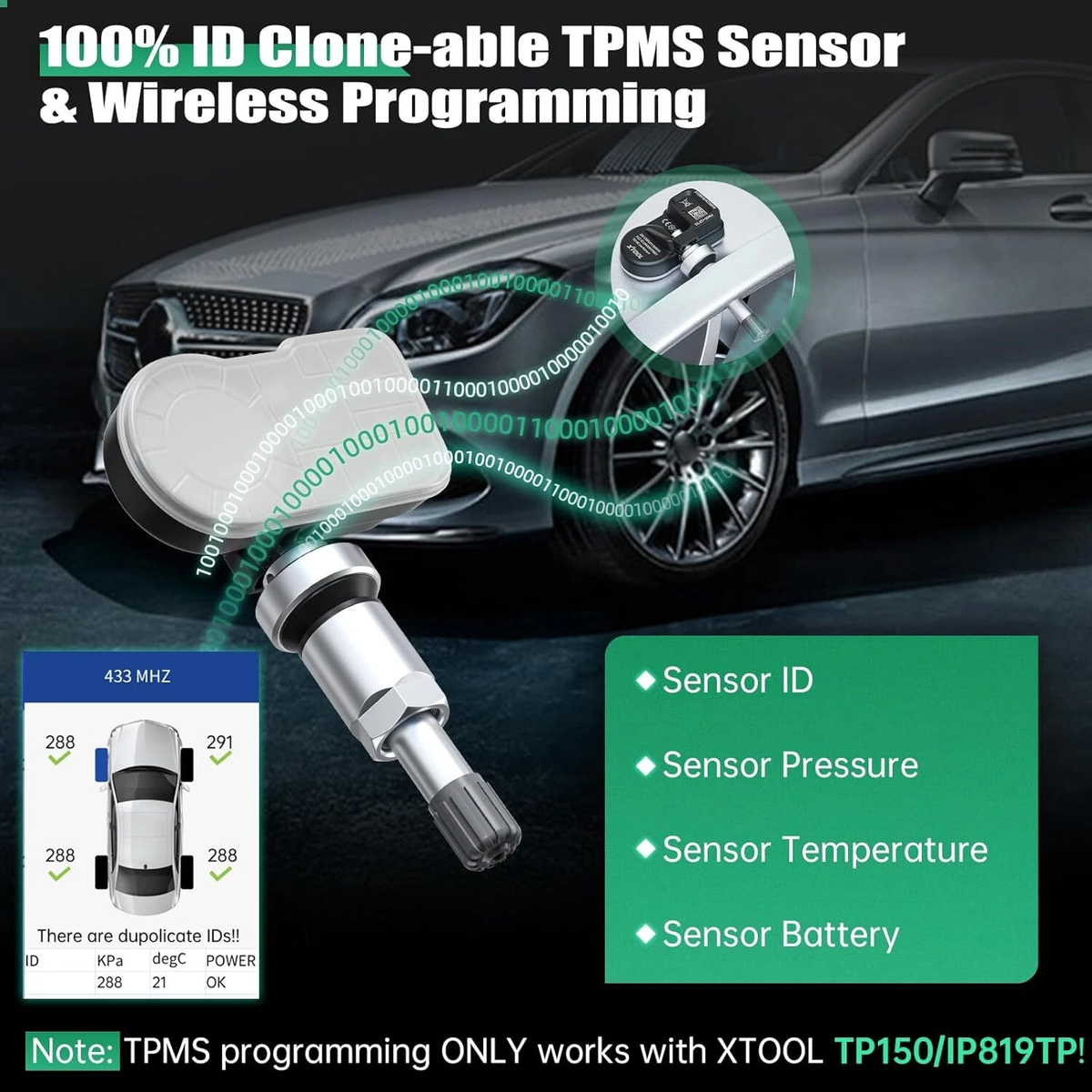

• Require the XTOOL TPMS activation tool to program TPMS sensors

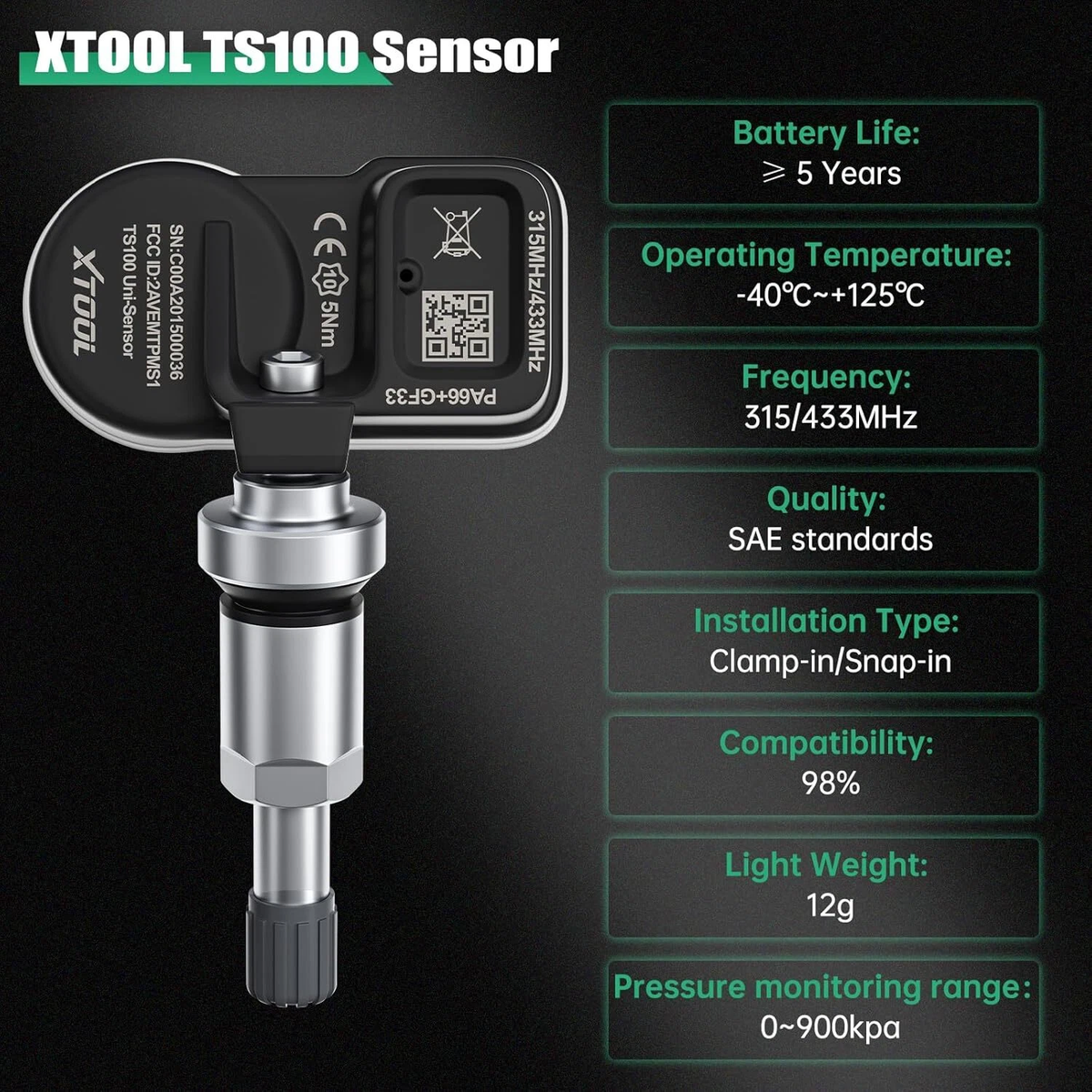

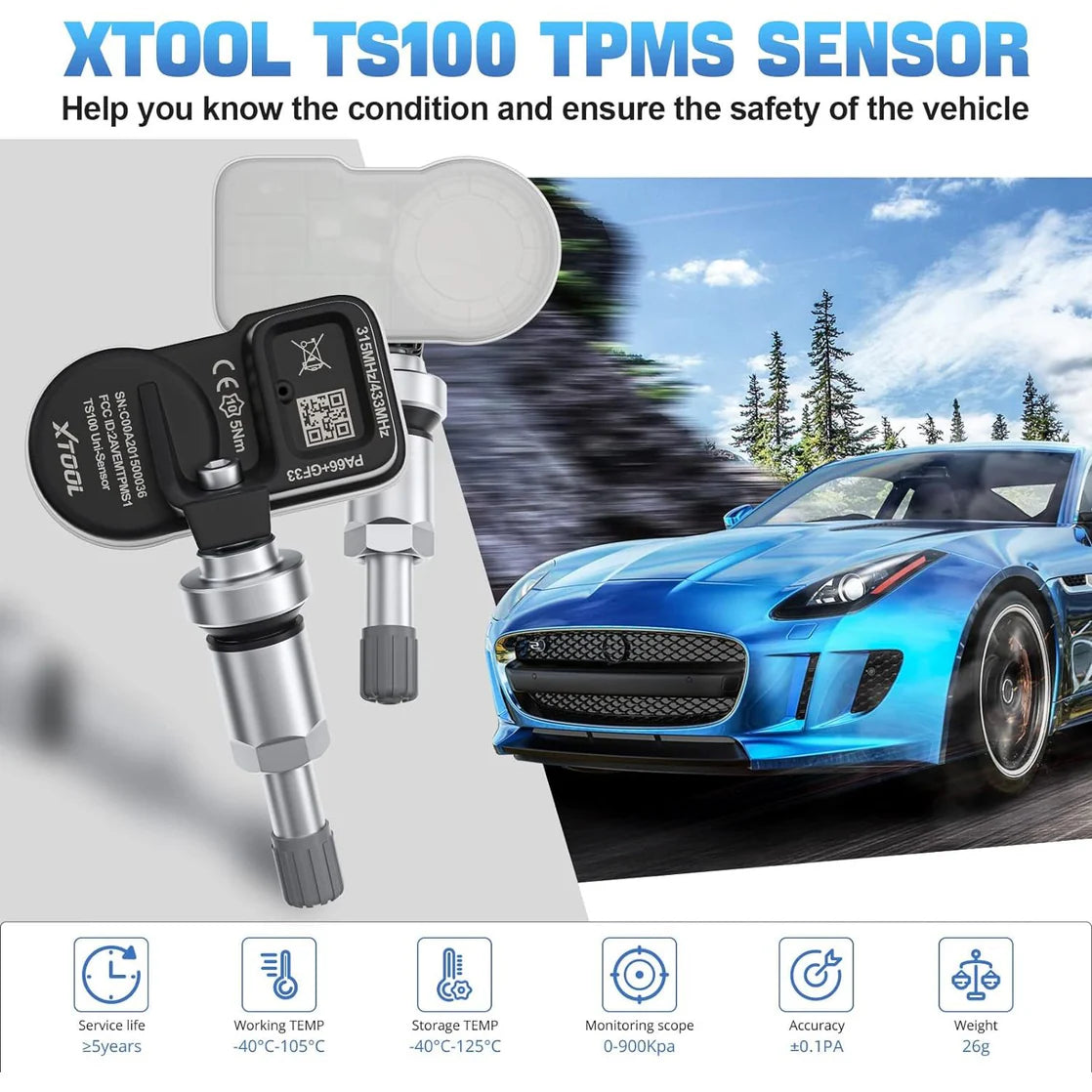

Parameters

• Battery Life：≥5 years
• Operating Temperature：-40°C ~ 105°C

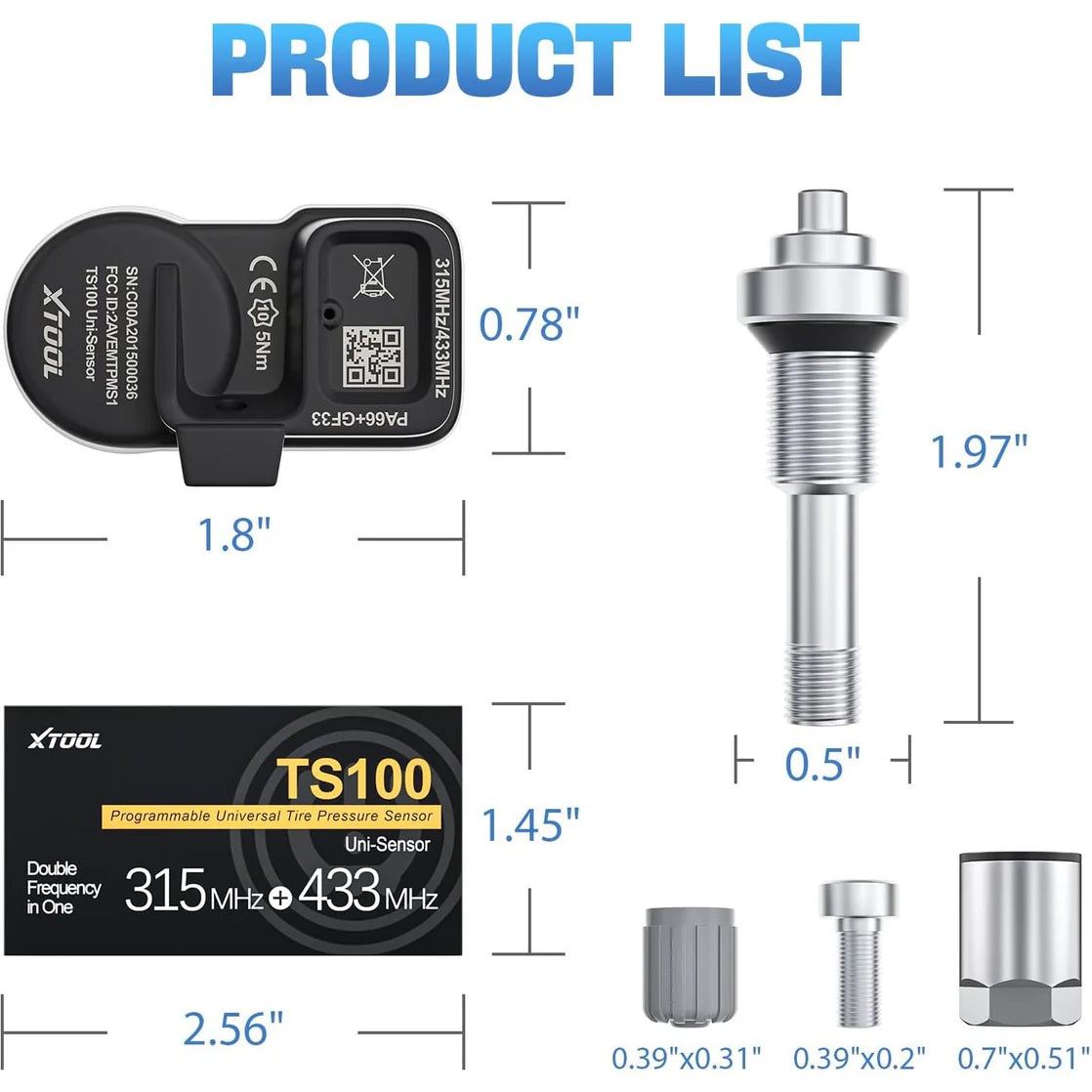

• Size：46.1 × 16.2 × 25mm
• Adjustment Angle：10°~45° adjustable
• Waterproof Rating：IP67
• Pressure Monitoring Range：0-900kPa

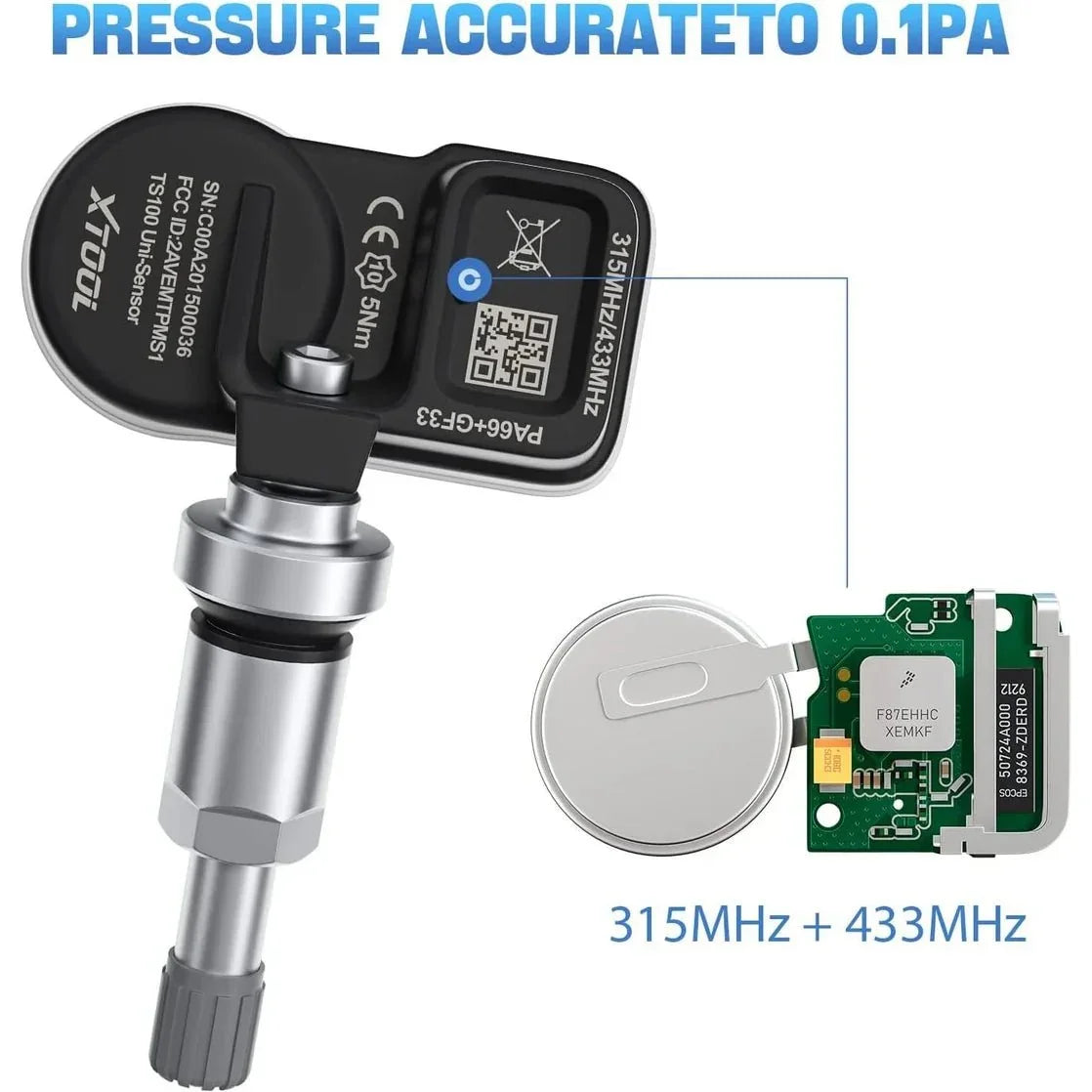

• Pressure Accuracy：±10kPa
• Weight (without air nozzle)：138
• Shell material：PA66+GF30

Accessories

• User Manual
• Packing List
• Certificate of quality
• Package Box

Main Units

•     TS100 PRO
