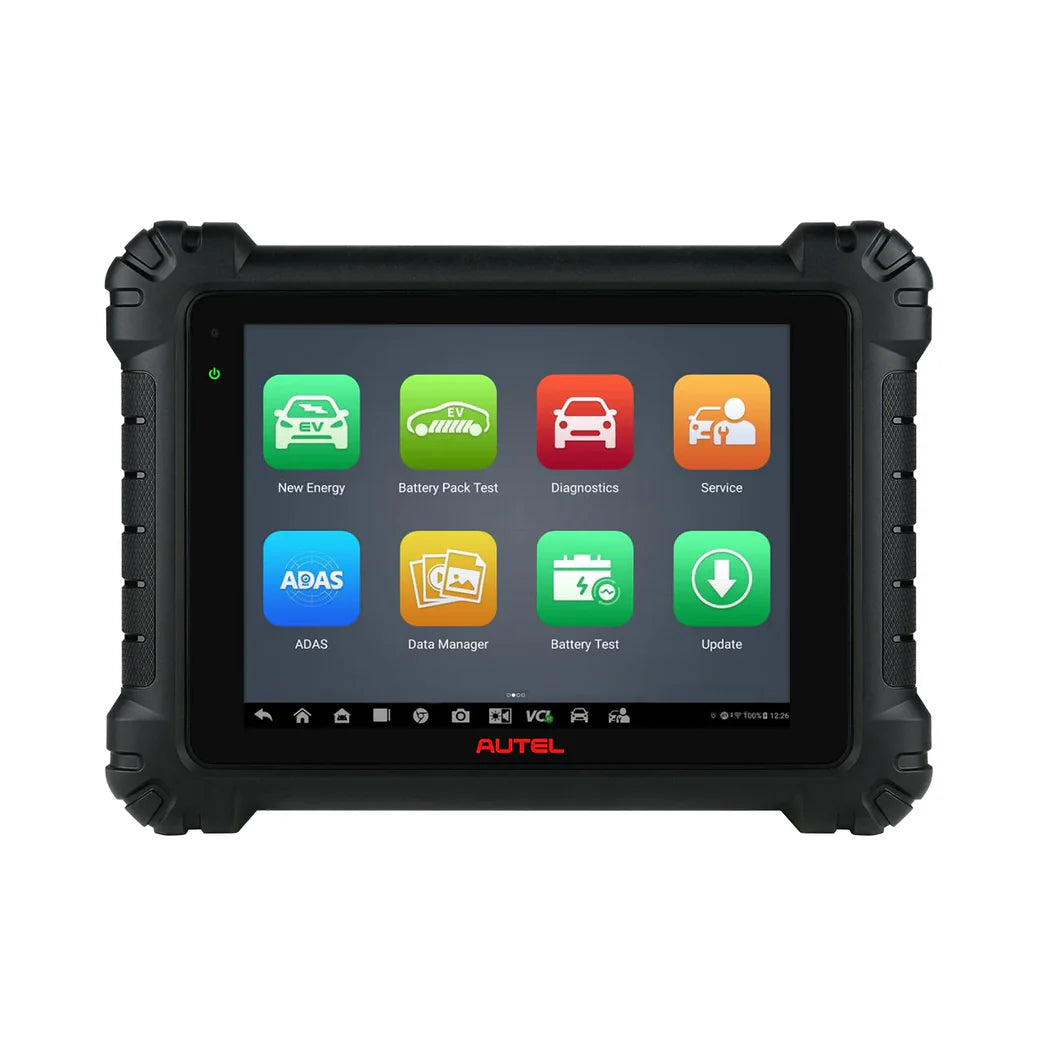

Autel MaxiSys MS909EV – EV & Hybrid Diagnostic Tablet with High-Voltage Analysis, Topology Mapping 2.0 & MaxiFlash VCI/J2534
The Autel MaxiSys MS909EV is a professional diagnostic tablet for electric, hybrid, and conventional 12-V vehicles. It integrates EV high-voltage (HV) system diagnostics, out-of-vehicle battery pack analysis (with the included EVDiag Box), intelligent diagnostics with topology mapping, bi-directional tests, and J2534 ECU programming/coding in one platform.
EV Diagnostics & High-Voltage Analysis
- HV System Block Diagram: visualizes components, lines, and plugs to accelerate fault tracing.
- Live HV Data: read/clear DTCs and view SOC, SOH, voltage, current, and temperature for HV modules.
- Battery Pack Out-of-Vehicle Test: guided procedures for pack/module checks before re-installation.
Intelligent Diagnostics & Topology Map 2.0
- Guided Workflow: Technical Service Bulletins, DTC Analysis, Repair Assist, Repair Tips, and Relevant Cases presented in a single flow.
- Topology Map: network view of control units and DTC status; jump directly to tests and data for faster root-cause isolation.
ECU Programming & Coding (J2534)
- Online ECU Programming: program blank/replaced ECUs and apply OEM updates via J2534 Pass-Thru (vehicle and OEM account requirements apply).
- Advanced Coding/Adaptation: write adaptive data and configure supported features after module replacement (coverage varies by brand/model/year).
-
Protocol Support: CAN-FD, DoIP, D-PDU, J2534, and RP1210 protocols.
Service Functions & Bi-Directional Control
- 40+ Special Functions: Oil Reset, EPB, SAS, BMS, Injector Coding, ABS Bleeding, Throttle, Headlamp, Suspension, NOx/AdBlue services, and more (vehicle-dependent).
- Active Tests: command actuators (e.g., pumps, valves, windows, wipers) to verify component operation without manual intervention.
- All-System Coverage: OE-level reading/clearing of codes and live data across powertrain, chassis, body, and network systems.
Key Features Summary
| Vehicle Coverage | EV/HEV/PHEV/BEV plus conventional 12-V vehicles; supports major Asian, European, and US brands (over 50 makes covered). |
| EV Capability | EVDiag Box for safe HV testing and out-of-vehicle battery pack analysis with guided diagrams and jumper references. |
| Diagnostics | Intelligent diagnostics with TSBs, DTC guidance, and case references; Topology Map 2.0 visualization. |
| Programming/Coding | J2534 online programming (OEM subscription may be required) and advanced coding/adaptation on supported models. |
| Updates | Free software updates for 1 year. |
| Form Factor | 9.7-inch Android tablet with cloud report sharing, data logging, and shop management utilities. |
What’s Included

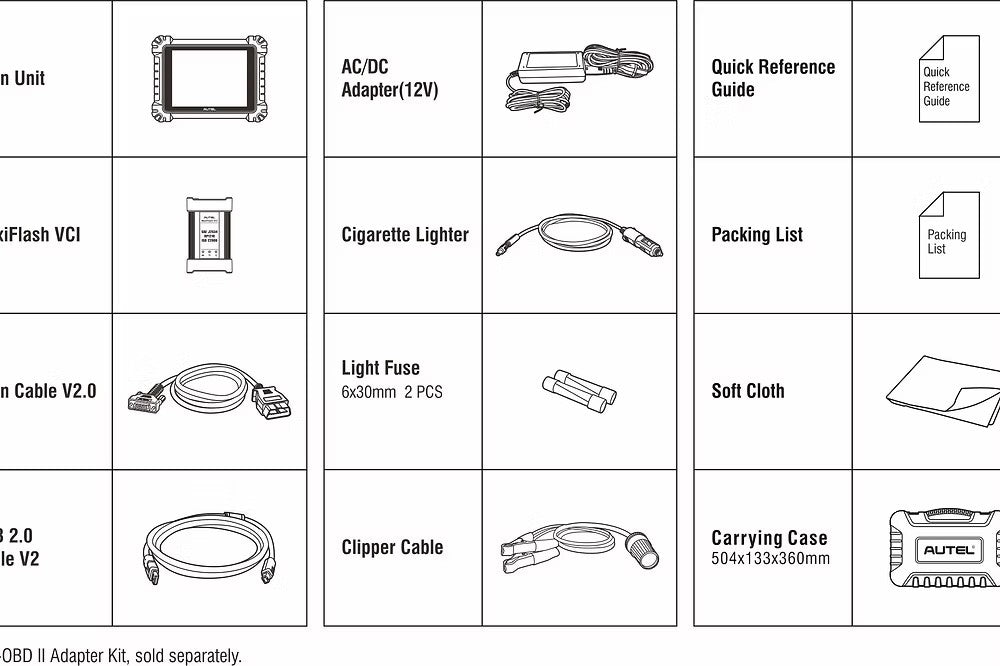

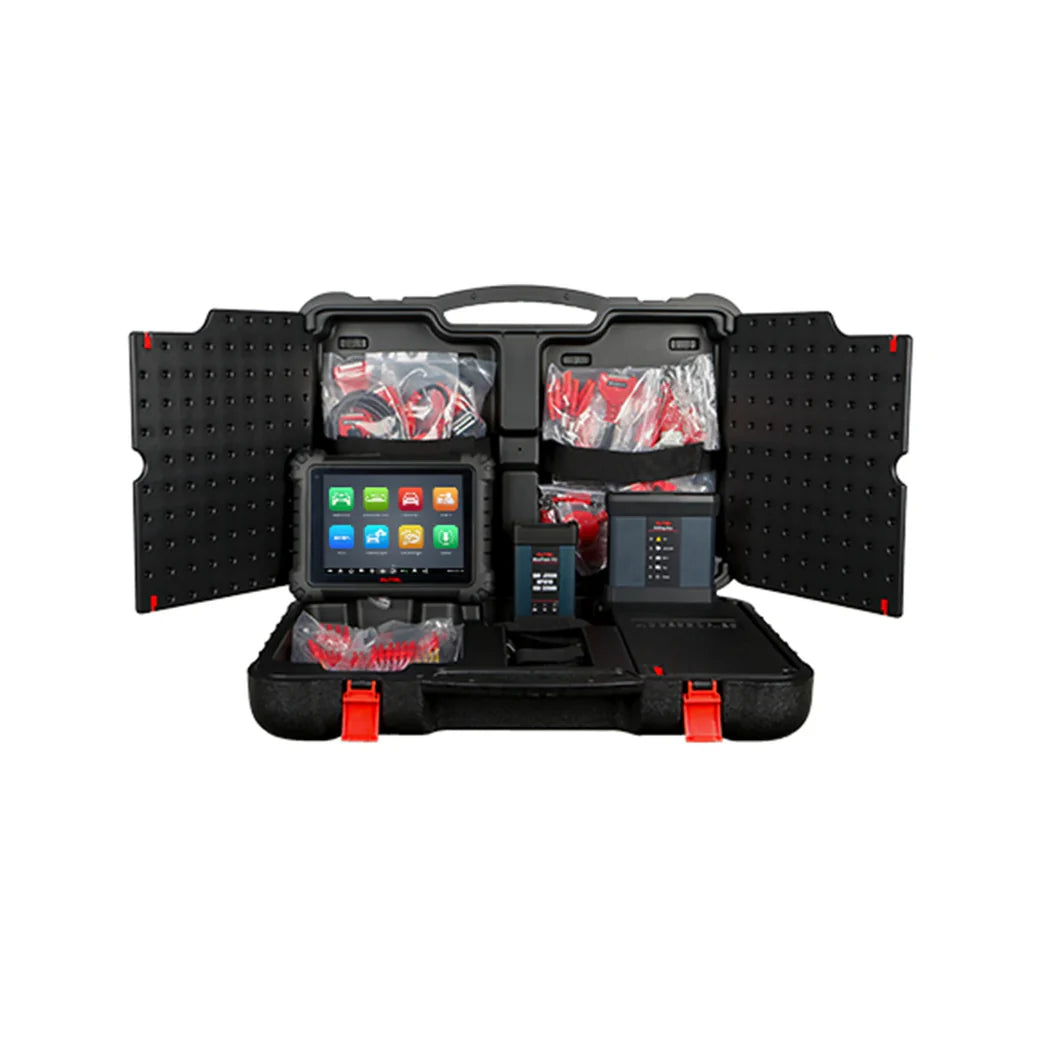

- MS909EV main tablet
- MaxiFlash VCI (wireless vehicle communication interface)

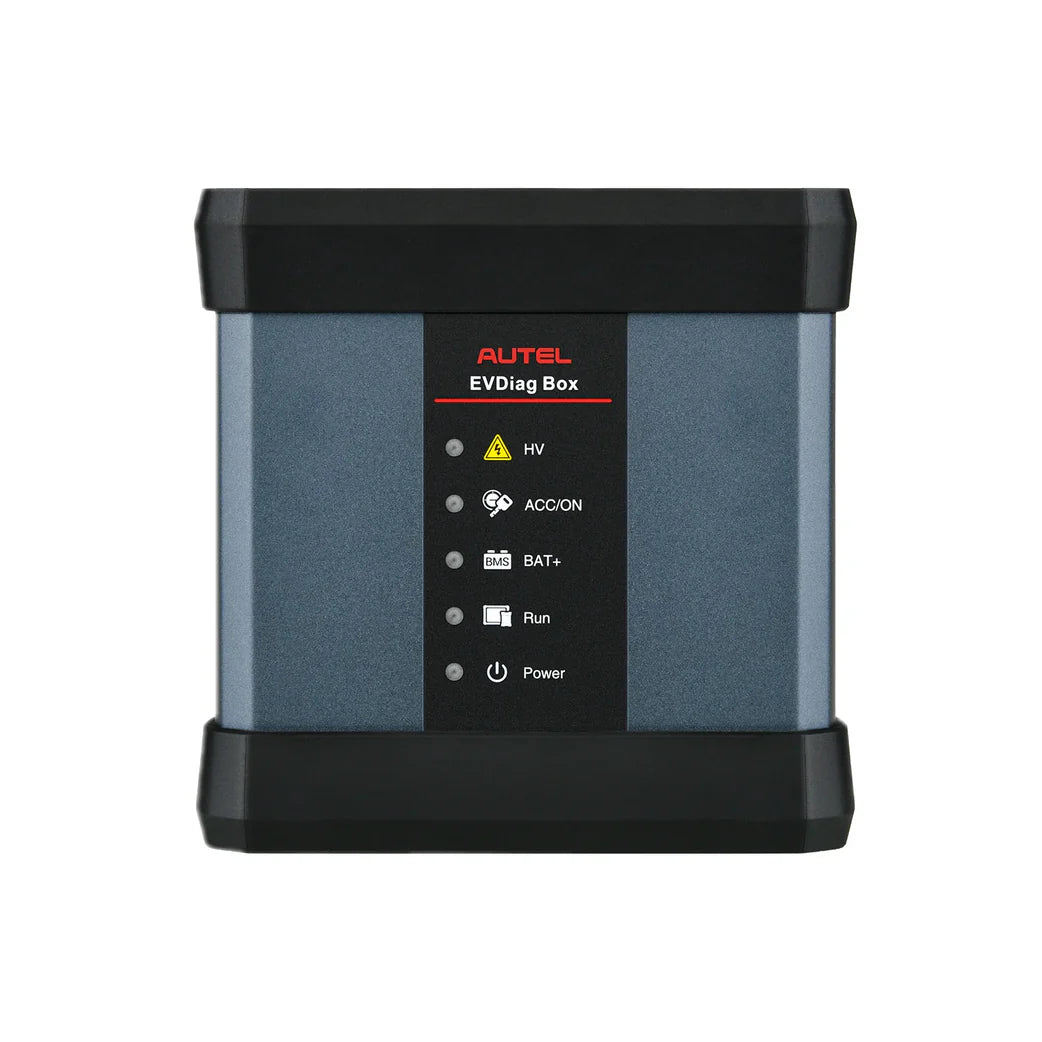

- EVDiag Box
- Main OBD-II cable and brand/adaptor leads (kit contents may vary)
- Quick reference guide and carrying case
Specifications
- OS: Android 10
- Processor: Octa-core platform (Qualcomm 660 class)
- Memory: 4 GB RAM, 128 GB storage; SD card expansion supported
- Display: 9.7-inch TFT-LCD touchscreen, 1536 × 2048
- Connectivity: Dual-band Wi-Fi, Bluetooth, GPS, USB 2.0, HDMI, SD Card
- Cameras: Rear: 16 Megapixel, Autofocus with Flashlight. Front: 16 Megapixel
- Battery: 15,000 mAh Li-polymer
- Sensors: G-sensor, ambient light
- Dimensions/Weight: approx. 304.4 × 227.8 × 42.5 mm; 1.66 kg
Vehicle Coverage (Overview)
Coverage spans major brands including (but not limited to) Tesla, BMW, Mercedes-Benz, VW/Audi/Skoda/Seat, Volvo, Toyota/Lexus, Nissan, Honda, Hyundai/Kia, Ford, GM, Renault, and more. Exact functions and ECUs supported vary by market and model year.
Notes
- Function availability (including programming/coding and special functions) varies by make, model, year, and ECU. Confirm coverage on the vehicle prior to service.
- High-voltage procedures must be performed by qualified personnel following OEM safety guidelines. Always use appropriate PPE and isolation steps.
- OEM accounts, paid subscriptions, and stable internet may be required for certain programming/coding operations.
- Kit contents, regional coverage, and update terms can differ; refer to the actual package and current software release.
