Autel MaxiDiag MD906 Pro Diagnostic Scan Tool, OBD2 Scanner

All System Diagnostic Scanner Tool with OIL RESET, BREAK BLEEDING, INJECTOR etc 11 Service Functions

• Special 11 Service Functions For DIYers: Autel MD906 Pro covers 11 key service functions: Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, Throttle Adaptation, EPB, BMS, TPMS, DPF Regeneration, AFS Headlamp, and Air-Fuel Ratio (A/F) Adjustment. These essential features ensure reliable maintenance support for modern vehicles across various makes and models.
• Complete OBD2 Diagnostic Tool: Autel MaxiDiag MD906 Pro Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function; Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data.
• Supports CAN FD Protocol: The MD906 Pro is compatible with the latest CAN FD communication protocol. This ensures faster data transmission and broader compatibility.
• Outstanding Hardware & Faster Operation: 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface; Bluetooth connectivity of VCI, more convenient in handheld operation scenarios, and Free lifetime OTA software updates.

Enhanced All System Diagnostics and Service Functions

• Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
• Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
• Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
• Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

Outstanding Hardware, Faster Operation

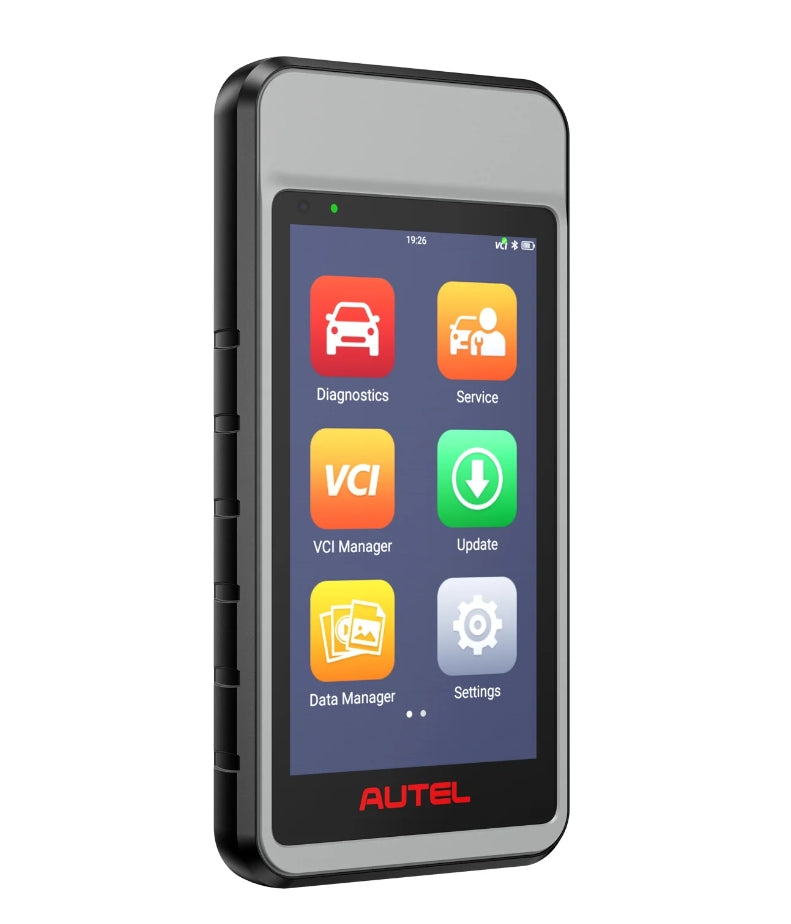

• 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
• 5,000mAh battery, deliver long battery-life
• Bluetooth connectivity of VCI, more convenient in handheld operation scenarios

Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector

• Support CAN FD communication protocol, compatible with advanced automotive systems
• Access automakers security gateways, such as FCA, SFD, etc.* (You need to purchase separately)
• Free lifetime OTA software updates, cost-effective handheld solution

Specification

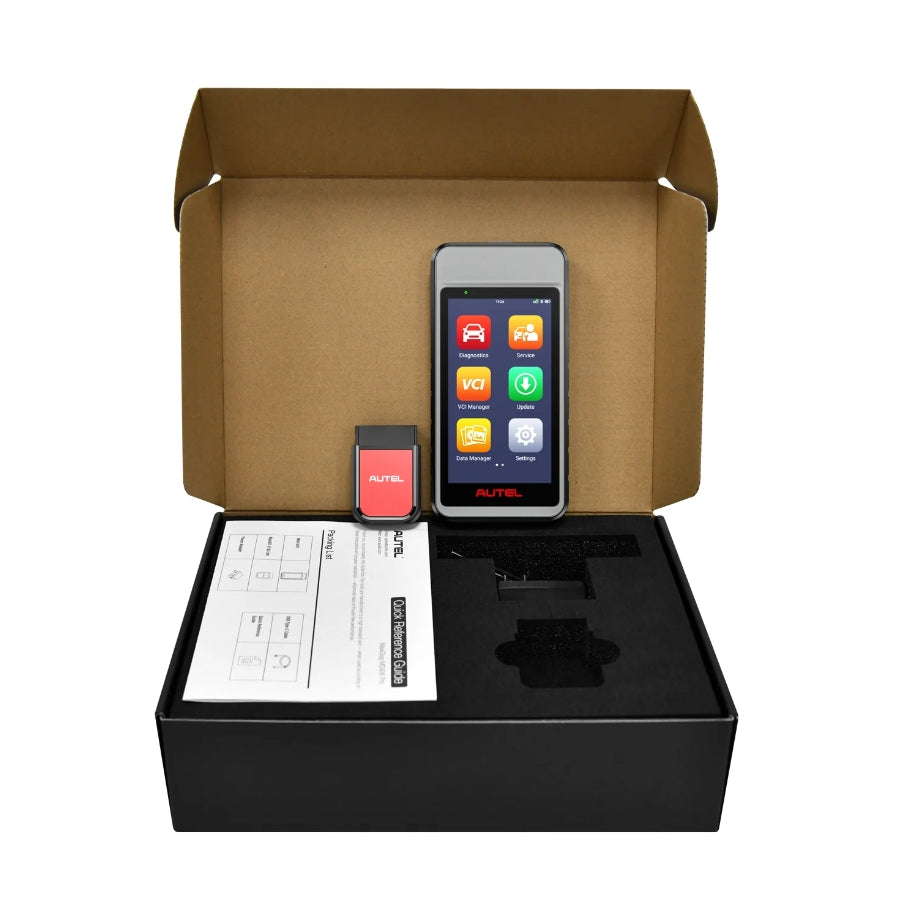

Packing List

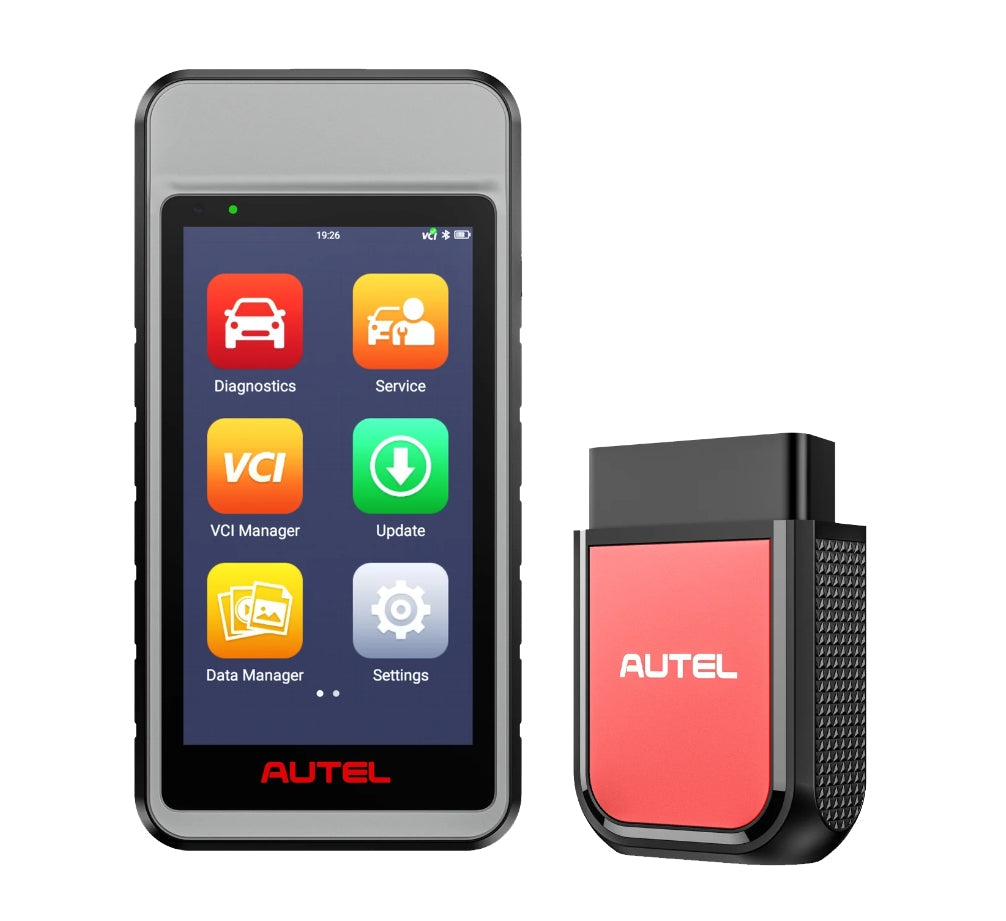

• 1x MD906 PRO Main Unit

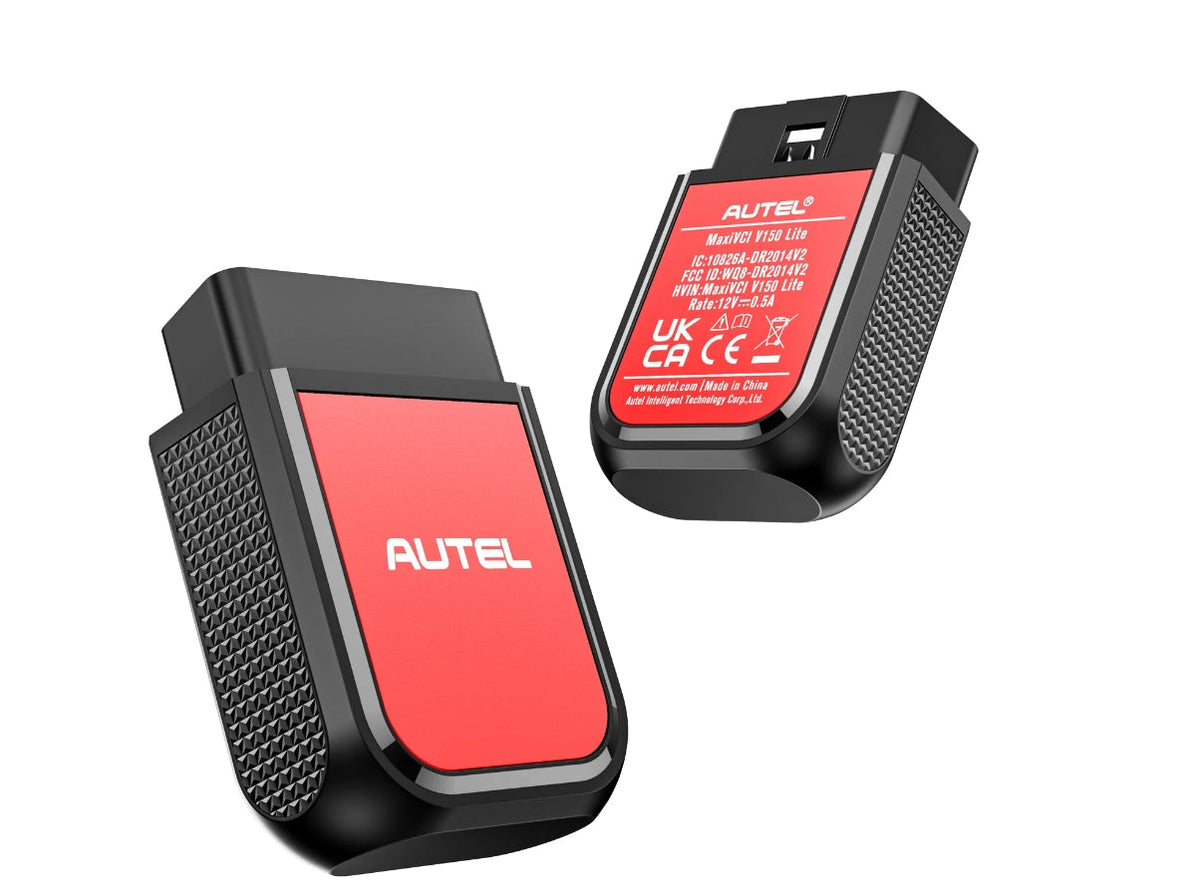

• 1x MaxiVCI V150 Lite
• 1x Power Adapter
• 1x USB Type-C Cable
• 1x Quick Reference Guide
• 1x Packaging BOX
